M22759/4线缆
作者:admin 来源: 日期:2015/6/2 11:11:29

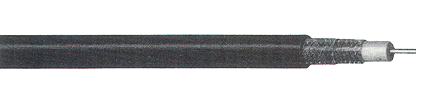

SAE-AS22759/4 绝缘Glass-FEP 镀银铜导体 线规22-00 600伏 200度 常规重量
应用:
特性:
产品描述:

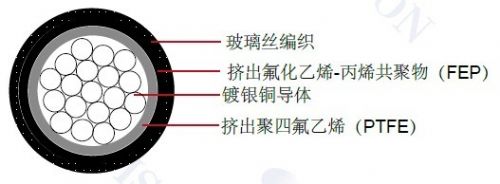

绞合镀银铜
PTFE胶带,PTFE涂层玻璃辫子,挤压透明FEP JKT,颜色编码按照MIL-STD-681
额定温度:200℃
额定电压:600伏
Mil-Spec # |
AWG |
Stranding |
Finished Wire | ||
Min O.D. (in) |
Max O.D. (in) |
Nom. Lbs/Mft |
|||
M22759/4-22-* | 22 | 19/34 | 0.071 | 0.077 | 5.90 |
M22759/4-20-* | 20 | 19/32 | 0.079 | 0.085 | 7.90 |
M22759/4-18-* | 18 | 19/30 | 0.092 | 0.098 | 11.0 |
M22759/4-16-* | 16 | 19/29 | 0.053 | 0.107 | 13.6 |
M22759/4-14-* | 14 | 19/27 | 0.067 | 0.120 | 18.5 |
M22759/4-12-* | 12 | 37/28 | 0.086 | 0.137 | 26.6 |
M22759/4-10-* | 10 | 37/26 | 0.108 | 0.170 | 41.5 |
M22759/4-8-* | 8 | 133/29 | 0.162 | 0.242 | 77.4 |
M22759/4-6-* | 6 | 133/27 | 0.210 | 0.292 | 115 |
M22759/4-4-* | 4 | 133/25 | 0.260 | 0.366 | 184 |
M22759/4-2-* | 2 | 665/30 | 0.330 | 0.445 | 281 |
M22759/4-1-* | 1 | 817/30 | 0.370 | 0.495 | 358 |
M22759/4-01-* | 1/0 | 1045/30 | 0.410 | 0.550 | 436 |
M22759/4-02-* | 2/0 | 1330/30 | 0.453 | 0.610 | 554 |
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681. | |||||
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White | |||||
Example: Size 20, white - M22759/4-20-9; white with orange stripe - M22759/4-20-93. |
河南三博电子是一家专业M22759/4线缆的供应商,我公司经营M22759/4线缆产品多年,质量口碑可靠。如果您有更多的M22759/4线缆价格问题,欢迎您联系我们厂家
