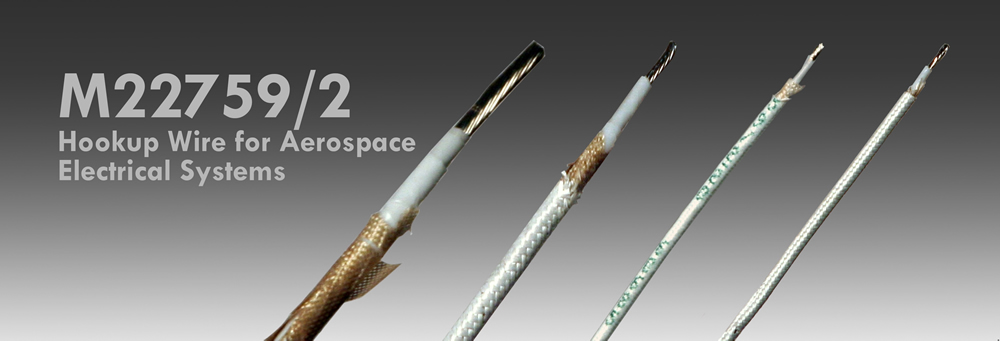

SAE-AS22759/2 绝缘PTFE-Glass 镀镍铜导体 线规22-0000 600伏 260度
应用:
高温应用,如飞机发动机,其中增加的耐磨损性是必需的
特性:
产品描述:
绞合镀镍铜导体
PTFE胶带,聚四氟乙烯的镀膜玻璃briad,颜色编码按照MIL-STD-681
额定温度:260℃
额定电压:600伏
Mil-Spec #
|
AWG
|
Stranding
|
Finished Wire |
Min O.D. (in)
|
MaxO.D. (in)
|
Nom.Lbs/Mft
|
M22759/2-22-* |
22 |
19/34 |
0.080 |
0.088 |
7.5 |
M22759/2-20-* |
20 |
19/32 |
0.090 |
0.098 |
9.5 |
M22759/2-18-* |
18 |
19/30 |
0.100 |
0.110 |
13.0 |
M22759/2-16-* |
16 |
19/29 |
0.115 |
0.125 |
16.5 |
M22759/2-14-* |
14 |
19/27 |
0.133 |
0.143 |
23.0 |
M22759/2-12-* |
12 |
37/28 |
0.152 |
0.162 |
32.1 |
M22759/2-10-* |
10 |
37/16 |
0.154 |
0.188 |
47.0 |
M22759/2-8-* |
8 |
133/29 |
0.241 |
0.255 |
82.0 |
M22759/2-6-* |
6 |
133/27 |
0.283 |
0.303 |
122 |
M22759/2-4-* |
4 |
133/25 |
0.340 |
0.370 |
180 |
M22759/2-2-* |
2 |
665/30 |
0.405 |
0.435 |
275 |
M22759/2-1-* |
1 |
817/30 |
0.455 |
0.485 |
348 |
M22759/2-01-* |
1/0 |
1045/30 |
0.495 |
0.535 |
429 |
M22759/2-02-* |
2/0 |
1330/30 |
0.555 |
0.595 |
542 |
M22759/2-03-* |
3/0 |
1665/30 |
0.620 |
0.660 |
668 |
M22759/2-04-* |
4/0 |
2109/30 |
0.690 |
0.730 |
835 |
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681. |
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White |
Example: Size 20, white - M22759/2-20-9; white with orange stripe - M22759/2-20-93. |
|
